Fully Mobile MDx Platform
with Extreme Efficiency and Convenience

At the leading edge of the PCR innovation, Ahram Biosystems
proudly presents the Palm PCRS1, Ultra-fast Mobile Real-time PCR system.
This state-of-the-art mobile instrument allows you to instantly
complete your realtime PCR tests anywhere, anytime with no
limitations in environment, electricity and communication.
With the essence of innovation in your Palm, you now have
complete access to the future of biotechnology.

Ultra-Fast & Multiplexing

The Palm PCR S1 system can deliver your multiplex realtime PCR results in less than
12 minutes with high sensitivity and accuracy, even at single copy target concentration.
Powered by the revolutionary convection PCR technology, this compact realtime PCR
instrument allows you to reach unprecedented ultra-fast PCR speed, 18 seconds per cycle.
With maximum of six realtime channels available, the full capacity of realtime multiplexing
can be attained with no detectable crosstalk, securing ultimate sensitivity and specificity.

Fully Mobile

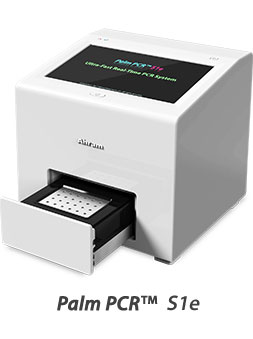

The Palm PCR™ S1 system features a stand-alone, fully mobile instrument. Completed in a
small compact design, this mobile device is powered by a rechargeable Li ion battery that
enables more than 4 hours of continuous PCR operation per single charge of the battery, and
operable at ambient temperature as high as 40°C.

Added on this innovation are the complete stand-alone capabilities, including a tablet PC and
a wide touch screen user-interface enclosed, as well as limitless access to communication
connections including Wi-Fi, Bluetooth, USB, LAN, and optional GPS.

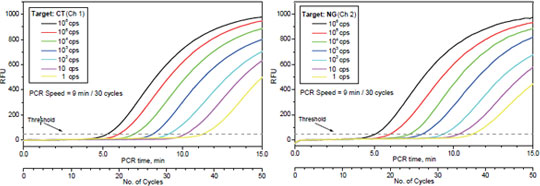

Ultra-Fast Multiplex real-time Assay shows Extreme Sensitivity down to Single Copy

The direct, qualitative detection of CT/NG is performed simultaneously within 9 minutes. These results indicate
that possible patients can be tested at the site of care with accuracy, thus this short-turnaround-time in vitro
test can be optimally effective CT/NG on site controls reducing the risk of contamination.

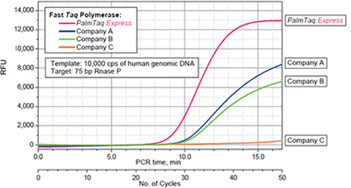

PalmTaq™ Express with the highest speed and efficiency

Ahram Biosystems offers a full range of the ultra-fast real-time PCR reagents, including the PalmTaq™ Express Taq polymerase as well as the PalmScript™ Express reverse transcriptase.

Palm PCR  S1 & S1e  Specifications
No. of wells 24
Real-time channels Max. 6 (5 for S1 and 3 for S1e )
PCR speed As fast as 9 min/30-cycles
Sensitivity Down to single copy
Throughput Over 400 tests/8-hours
Size (w x d x h) 19.5 cm x 17.7 cm x 17.9 cm
Weight 3.0 kg (3.8 kg including a battery)
Operation temperature Up to 35℃
Communications Wi-Fi, Bluetooth, USB and LAN
Portability ≥ 4 hours continuous PCR operation
per single charge of a battery
