Battery-Powered, High-Speed Centrifuge
for Mobile MDx Lab

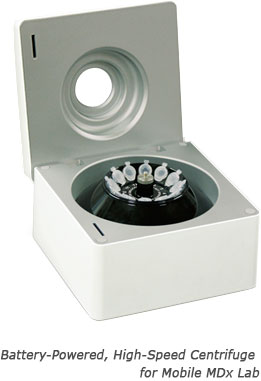

Ahram™ RX1 is a battery-powered compact portable centrifuge. It is ideal for various MDx
applications due to its fully mobile and stand-alone features.

This simple and convenient device allows point-of-care use when an immediate clinical
diagnosis is required on-site or near the patients.
With a small but powerful force of Ahram™ RX1 , the DNA sample can be extracted with
ease at any places without contaminations.

It comes with an angle rotor, which can load up to twelve 1.2mL tubes and reaches maximum
speed of 8,500 rpm and accordingly 4,680 rcf.
Ahram™ RX1 is powered by a rechargeable Li polymer battery which allows 2 hours of
continuous operation on a single charge. It can also be operated with DC power using an
AC/DC adaptor.

Ahram™  RX1
Specifications
Maximum speed 8,500 rpm; 4,680 rcf
Maximum load 12 x 1.5 mL microcentrifuge tubes
Size (w x d x h) 17.0 cm x 17.0 cm x 11.6 cm
Weight 1.3 kg including a rechargeable battery
Input power DC 11.1-15 V, 4 A
Power consumption ≤ 10 W at maximum rpm
Battery capacity ≥ 2 hours operation at maximum rpm per single charge
